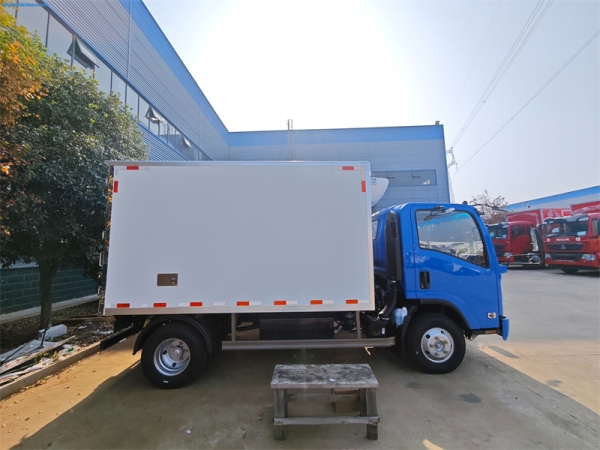

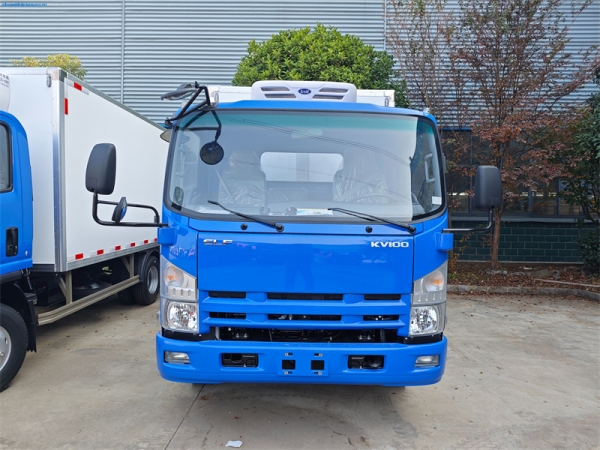

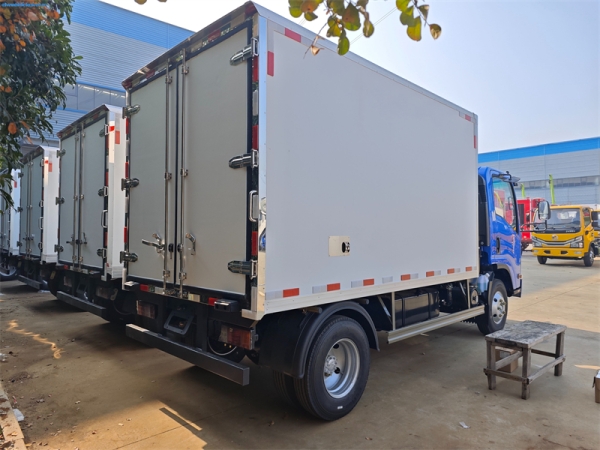

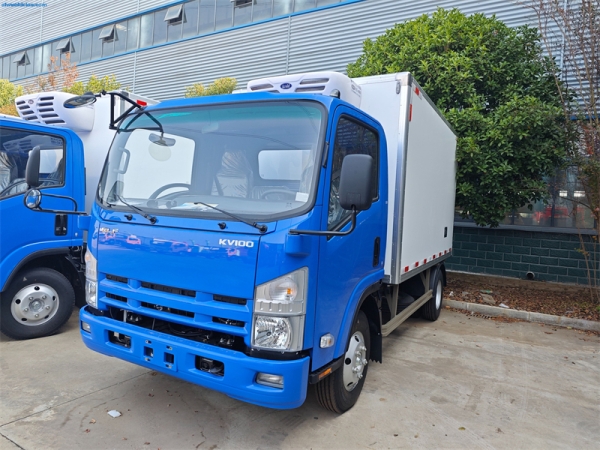

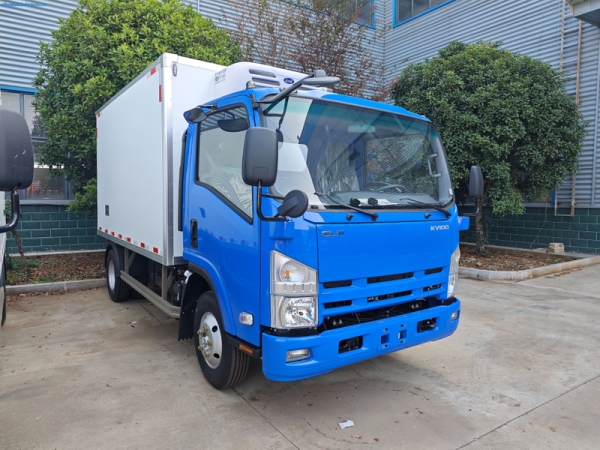

The ISUZU 4x2 Refrigerator Van Truck offers a robust and customizable solution for transporting temperature-sensitive goods. With flexible features and cutting-edge technology, this refrigerated van is designed to meet the needs of businesses in logistics, food, pharmaceuticals, and more. Explore the key features and options below to find the perfect refrigerated vehicle for your business.
| Vehicle Description | Brand | CLW |
| GVW(kg) | 7300 | |
| Curb Weight(kg) | 3750 | |
| Loading Weight(kg) | 3355 | |
| Overall Dimension(mm) | 6010x1920x2880 | |
| Wheelbase(mm) | 3360 | |
| Front/Rear Overhang(mm) | 1110/1625 | |
| Approach/Departure Angle | 19/12 | |
| Axle Load(kg) | 2580/4720 | |
| Number of Cabs | 3 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1073BUHAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4KH1CN6LB |
| HP | 132 | |
| Emission Standard | Euro 5 | |
| Displacement/Output(ml/kw) | 2999/97 | |
| Fuel Type | Diesel | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | 5Forward/1Reverse Gear | |
| Tyre | 6+1spare tire;7.00R16LT 14PR | |
| Van | Box Size(mm) | 4060x2100x2000 |
| Material | Fiberglass | |
| Insulating Layer | 8cm polyurethane foam | |
| Refrigerator | Brand | Kcold |
| Applicable Temperature | `-25~+30°C | |
| Air Volume(m³/h) | 2300 | |
| Air Speed(m/s) | 3.3 | |
| Condenser Dimensions(mm) | 1023x435x316 | |
| Evaporator Dimensions(mm) | 1080x627x220 | |
| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Customizable Refrigeration Systems: Tailor your refrigeration needs with various options, including underfloor refrigeration units, backup systems, and standby refrigeration units. This Refrigerator Van Truck ensures optimal temperature control for perishable goods.
Insulated Doors and Side Protection: Choose from insulated roller shutter doors or standard insulated doors. The side protection is available in durable 6063 aluminum alloy or Q235 steel, ensuring high-strength and impact resistance. The truck is designed to keep goods cool and safe during transport.
Hydraulic Tailgate Option: For easy loading and unloading, opt for a hydraulic tailgate. The retracted horizontal length of the tailgate is 290mm, with a mass of 450kg, providing a smooth and efficient operational flow.
Chassis and Front Design: Customize the front signage, lamps, and bumper based on your chassis selection. The vehicle can be configured with a one-and-a-half-row cab and mirrors. Side doors are also customizable: choose from a single door, double door, or no door, as per your needs.
Insulated Composite Panels: The Refrigerator Van Truck comes equipped with insulated composite panels, enhancing temperature retention and making it an ideal solution for industries requiring strict temperature control.
Flexible Fuel and Tank Installation: Depending on the chassis, fuel tanks, batteries, urea tanks, and air storage cylinders can be installed on either side, offering flexibility in layout and design.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
