Product Description:

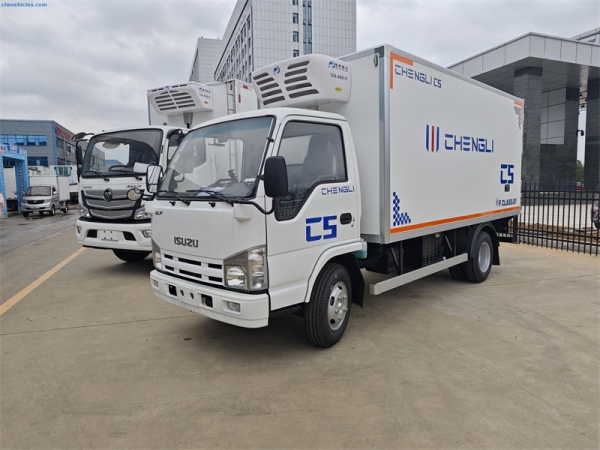

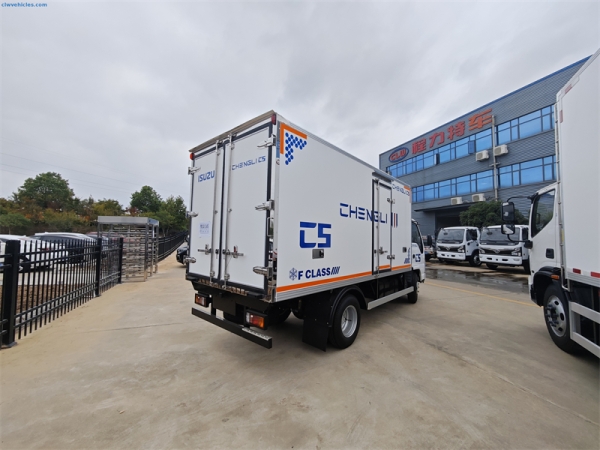

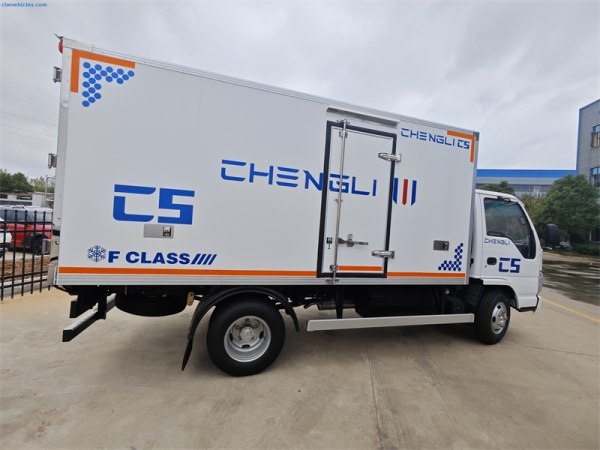

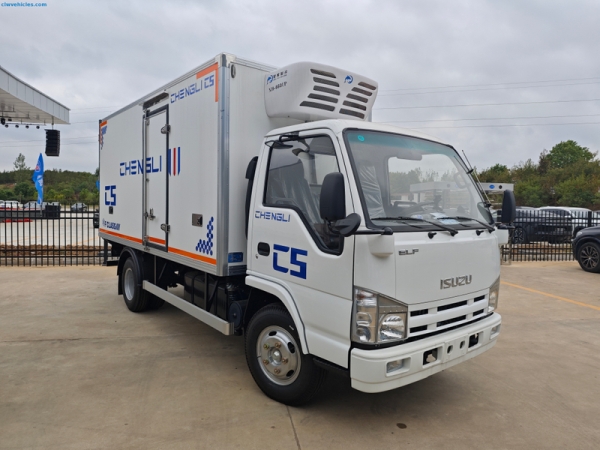

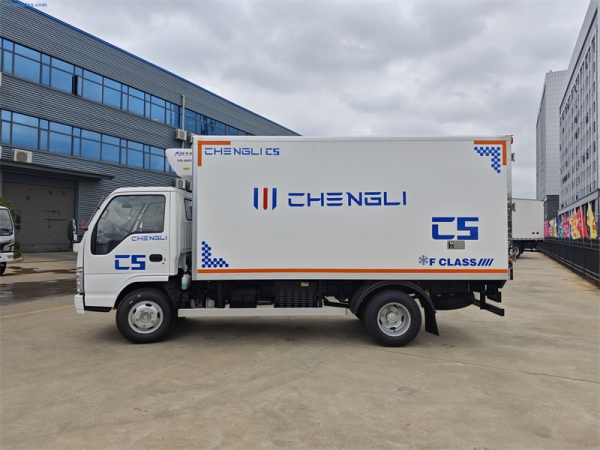

Isuzu Elf 4x2 Cooling Reefer Truck:
The chassis adopts Isuzu ELF 4x2 chassis. The tires used are 7.00R16LT 14PR. The overall vehicle size is 6010x1920x2880mm, with a wheelbase of 3365mm. The engine is 4KH1CN6HB, with a horsepower of 132 and a displacement of 2.999L.
Upper-mounted device: Refrigeration unit and refrigerated box.
The box size is 4015x1850x2100mm. The material of the bottom plate is fiberglass plate + insulation layer, with a thickness of 75mm; the material of the side plate is fiberglass plate + insulation layer, with a thickness of 80mm.
The refrigeration unit is xh660-up.
Side protection material: steel plate Q235. Connection method: connected to the crossbeam of the carriage by bolts. Rear protection material: steel plate Q235, plate thickness 2.5mm.
Connection method: the rear protection bracket is connected to the end of the longitudinal beam of the frame by bolts. Rear protection section size: 139×50 (mm). Ground clearance: 430mm.
This vehicle allows the option of no door on the right side and double doors on the right side. It also allows the option of different units of equivalent power from different manufacturers.
It allows the option of wide fender eyebrows, narrow fender eyebrows, signs, rearview mirrors, etc. according to the chassis.
This model can be optionally equipped with an ETC on-board device. Optionally equipped with a hydraulic lifting tailgate. The tailgate weighs 450kg and has an extension of 280mm when retracted. At this time, the rear protection is provided by the hydraulic tailgate.
The material is SAPH. It is a cylindrical structure with a section size of Ф114mm and a material thickness of 2.0mm. The ground clearance is 435mm.
Main Technical Parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 4460 | |
| Curb Weight(kg) | 2860 | |
| Loading Weight(kg) | 1400 | |
| Overall Dimension(mm) | 6010*1920*2880 | |
| Wheelbase(mm) | 3365 | |
| Axle Load(kg) | 3000/5280 | |
| Top Speed(km/h) | 105 | |
| Chassis Brand | ISUZU | |
| Chassis Model | QL1080BUHAY | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | 4KH1CN6HB |
| HP | 132 | |
| Emission Standard | Eu 5 | |
| Displacement/Output(ml/kw) | 2999/97 | |
| Fuel Type | Diesel | |
| Maximum Torque(N·m) | 290 | |
| Gearbox | ISUZU MYY-6s 6Forward/1Reverse Gear | |
| Tyre | 7.00R16LT 14PR | |

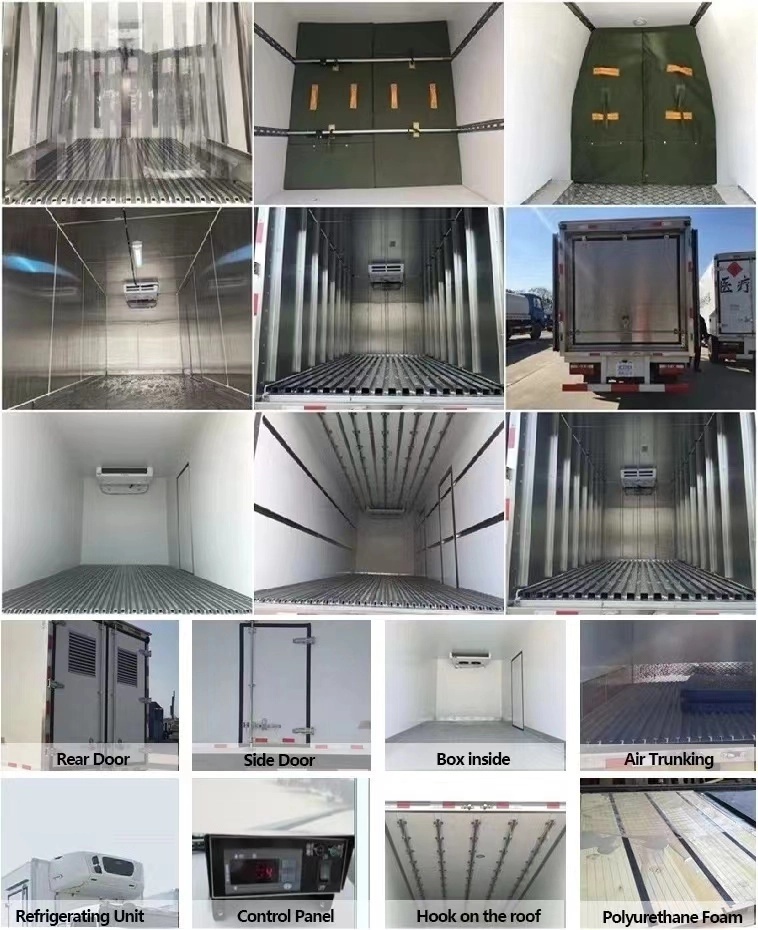

| Van | Box Size(mm) | 4015*1850*2100 |
| Material | Fiberglass | |
| Insulating Layer | 7.5cm polyurethane foam | |

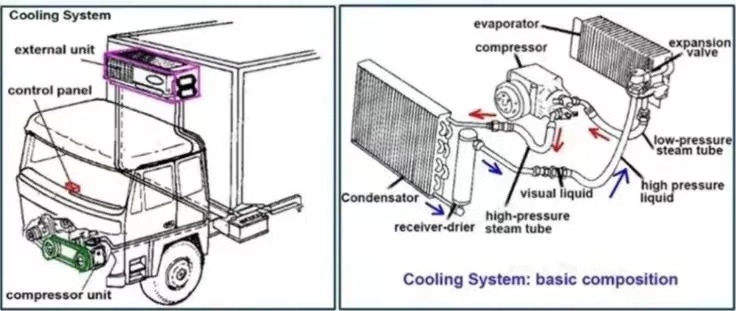

| Refrigerator | Brand | XH-660UP |
| Applicable Temperature | `-5~18°C | |

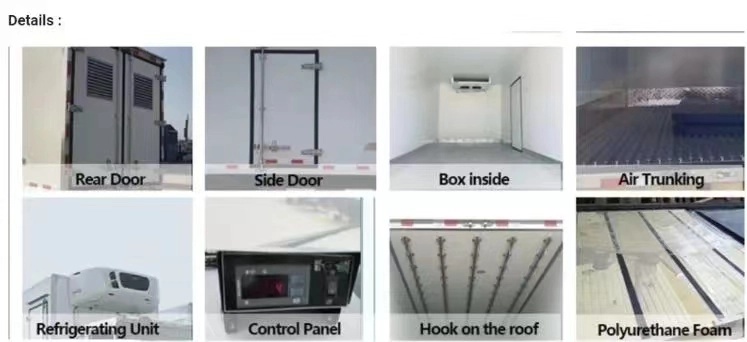

| Remarks | Part Optional:Ventilation Slot | |
| Hook | ||
| External Power Supply | ||
| Side Door | ||
Optional tailgate：
The weight of the tailgate is 550 kg. The horizontal length of the tailgate in the retracted state is 295 mm. When the tailgate is selected, only the rear protection with a cross-sectional dimension of Φ121 is used. The material of the rear protection is Q235. The connection method is welding. The ground clearance is 470 mm. Optional refrigeration unit with equivalent power from other manufacturers. Optional fixing method of side protection crossbars. Side protection: material Q235, bolted connection. Rear lower protection: material Q235, bolted connection. Cross-sectional dimension is 120×60 mm. Ground clearances are 480 mm, 460 mm, and 440 mm.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
