main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 18000 | |
| Curb Weight(kg) | 7545 | |
| Overall Dimension(mm) | 8550*2550*3200 | |
| Wheelbase(mm) | 4500 | |
| Axle Load(kg) | 6500/11500 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFH1180EX8 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | B210 33 |
| HP | 210 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 5900/155 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 700 | |
| Maximum Torque Speed(rpm) | 1500 | |
| Gearbox | 6Forward/1Reverse Gear | |
| Tyre | 10.00R20 18PR | |
| Tanker Description | Actual Volume(cbm) | 11 |
| Effective Volume(cbm) | 10.51 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||
| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||
| 3.Front-mounted intelligent electronic water cannon | ||

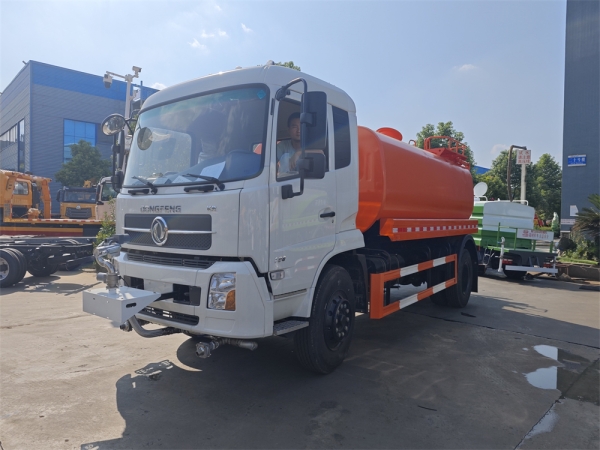

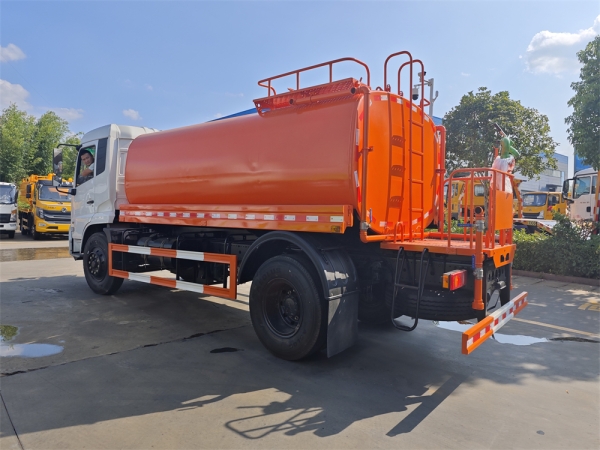

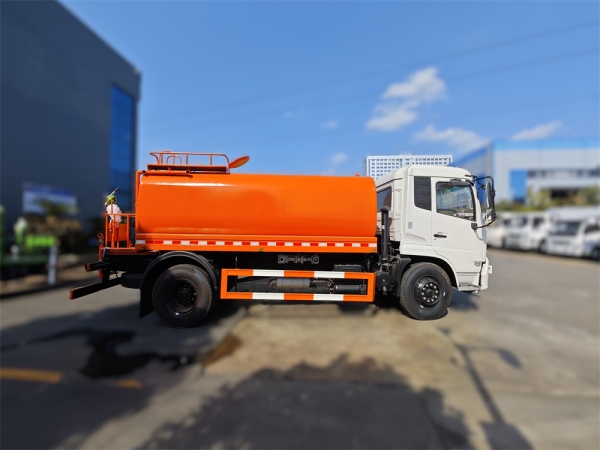

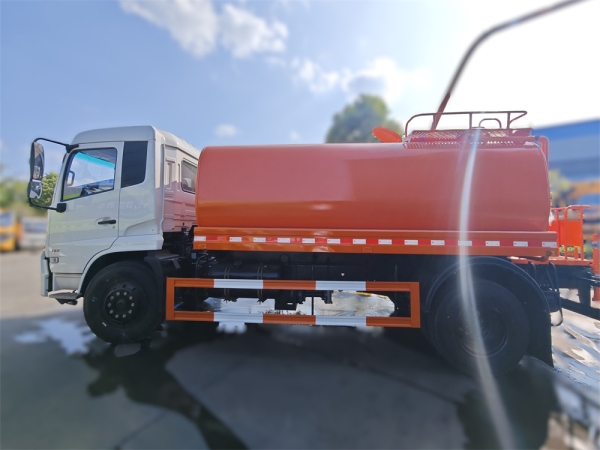

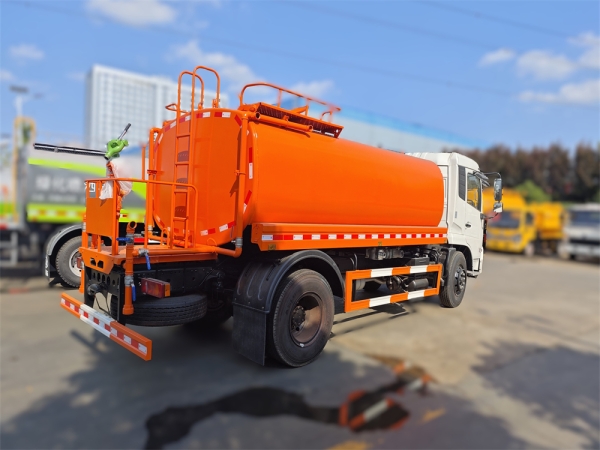

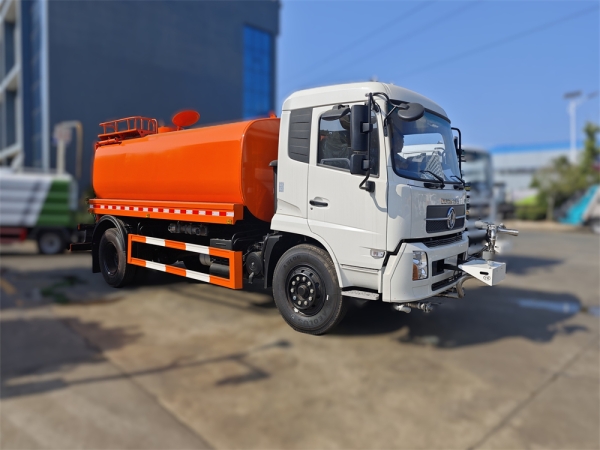

The sprinkler device of this DongFeng KR 4x2 11cbm Water Tank Sprinkler Truck has the following characteristics:
1. Multiple spraying functions:
- Front flushing: It can be used to wash the road surface. The nozzle is located low and close to the ground, with a large spraying pressure, which can effectively wash away dust, dirt and debris on the road and keep the road clean.
- Rear sprinkling: Usually, a nozzle is installed on each of the left and right sides at the rear of the vehicle. The sprinkling surface is wide and is suitable for scenarios such as road construction sprinkling. For example, after laying asphalt on a newly built road, the road surface can be maintained by rear sprinkling.
- Side spraying: It can sprinkle water on the areas on both sides of the road to expand the sprinkling coverage range, such as watering the green belts on both sides of the road.
- Shower nozzles: Shower nozzles are installed on the left and right of the upper part of the rear working platform and can be used for fine sprinkling in specific areas, such as watering small flowers or sprinkling water on some plants that need careful watering.
- Greening sprinkler cannon: The cannon can rotate in all directions and can be continuously adjusted to different spraying states such as direct flushing, heavy rain, light rain, and drizzle. It can not only water tall trees but also spray water remotely when needed, such as conducting large-area sprinkling and dust suppression in some squares or large venues.
2. Strong adjustability: The shape and water volume of the sprinkling can be flexibly adjusted according to actual operation requirements. For example, the greening sprinkler cannon can be adjusted to different spraying states to adapt to various operation scenarios. For example, it can be adjusted to a heavy rain state when a large amount of water is needed, and to a light rain or drizzle state when watering seedlings. The columnar range can reach a certain distance (the specific range may vary depending on the vehicle model and configuration), and the foggy spraying is uniform, which can meet different sprinkling requirements, such as remote watering or uniform spray dust suppression in specific areas.
3. Equipped with a high-power dedicated sprinkler pump: The pump can self-prime and self-discharge, and has a pressure water outlet function, ensuring the efficiency and effect of sprinkling. The self-priming function enables the vehicle to draw water from various water sources, such as fire hydrants, ponds, and rivers, increasing the flexibility and convenience of the operation. The pressure water outlet ensures the strength and range of the sprinkling, and can effectively spray water to the required places.
4. Reasonable tank design: The tank is made of high-quality steel plates and is equipped with built-in anti-wave plates to reduce the impact of the liquid in the tank during vehicle driving, improving the stability and safety of the tank. The tank volume is large and can meet the sprinkling operation requirements for a long time and a large range.
5. Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.
- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
