Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 11130 | |
| Overall Dimension(mm) | 10270*2550*3260 | |
| Wheelbase(mm) | 4375+1400 | |
| Axle Load(kg) | 7500/13000 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | Shacman | |
| Chassis Model | SX3255DV384 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.290 |
| HP | 290 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9726/213 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1160 | |
| Maximum Torque Speed(rpm) | 1200-1600 | |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. | |
| Gearbox | RTD11509C: 9Forward/1Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Tanker Description | Actual Volume(cbm) | 18.03 |
| Effective Volume(cbm) | 17.15 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||
| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||
Product Description:

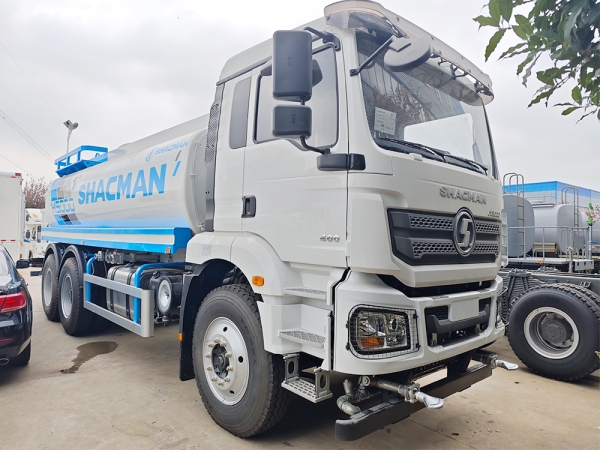

This Shacman H3000 6x4 17cbm Water Tank Sprinkler Truck is based on the shacman H3000 6x4 chassis and is configured with 11.00r20 18pr tires.
The vehicle is equipped with a tank, water pump, pipeline system, etc. It is used for cleaning road surfaces and spraying water on road surfaces to reduce dust.
The total capacity of the tank is 18.03 cubic meters, and the effective volume of the tank is 17.17 cubic meters. The tank size (length × width × height) in millimeters is 6500 × 2450 × 1650. Only the chassis with a wheelbase of 4375 + 1400 mm is selected for modification.
The materials of the side and rear protections are both Q235. The side protection connection method is bolt connection. The rear protection connection method is welding connection. The rear protection cross-sectional size (mm) is 150 × 50, and the ground clearance of the lower edge is 470 mm.
Optional front bumper and front face appearance of the cab are selected according to the chassis; optional wheel cover appearance and footboard appearance are selected, and optional low-position bumper is selected. Optional cab without sun visor.
Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.
- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
