Product Description:
1. Vehicle Equipment and Function:
- This vehicle is equipped with special working devices such as tanks and water spray racks, which are used for road cleaning operations.
2. Other Configurations:
- Driver's airbag seat, four-way adjustable genuine leather seat.
- Remote control central locking system.
- Electric window lifter.
- Multifunctional steering wheel with cruise control.
- 12.3-inch liquid crystal central control screen.
- 360-degree surround view function.
- Integrated electric rearview mirror with heating function.
- Single-cooling air conditioner + PTC.
- Rotary gear shift.
- EPB (Electronic Parking Brake) electronic parking brake.
- 12.3-inch full liquid crystal digital instrument panel.
- Driving recorder.
- Auto hold.
- Tire pressure monitoring.
- ABS (Anti-lock Braking System).
- Electro-hydraulic power assist.
- Air brake system (front and rear drum brakes).
3. Side Protection:
- Sheet metal battery cover + aluminum alloy side protection.
- Large rear platform.
4. On-board Operation:
- The cab is equipped with a rotary control box and a low water level alarm device.
5. Water Filling Methods:
- Water filling from the top and standard fire-fighting interface.
6. Anti-corrosion for On-board Equipment:
- All structural components have electrophoretic coating both inside and outside + external painting, and the inside of the tank is anti-corrosive.
7. Coating:
- Customizable coating schemes are available.

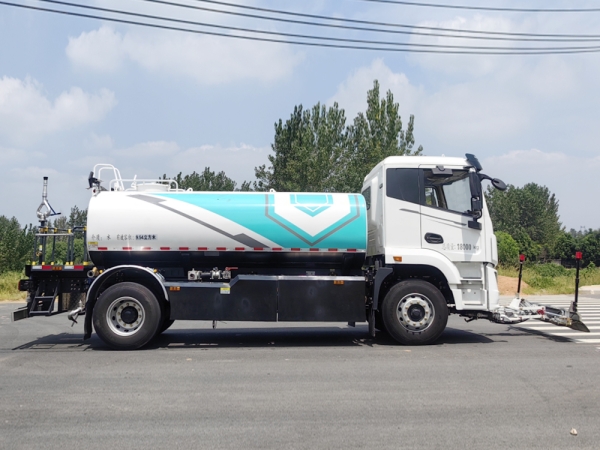

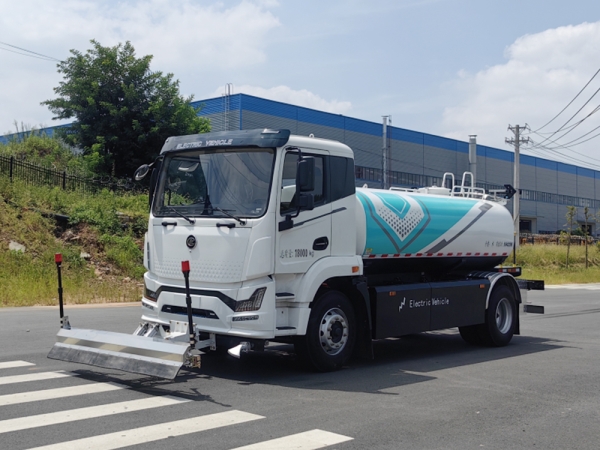

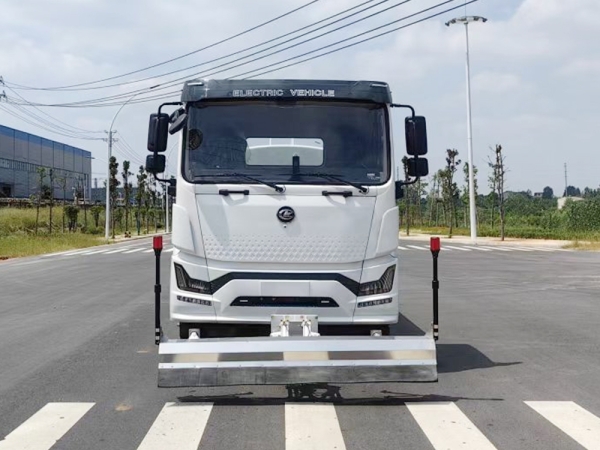

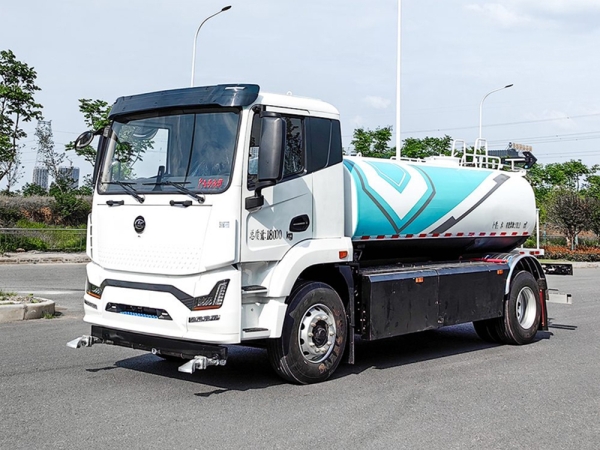

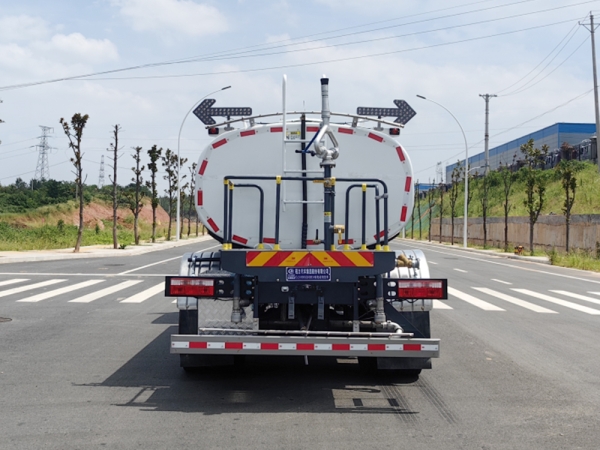

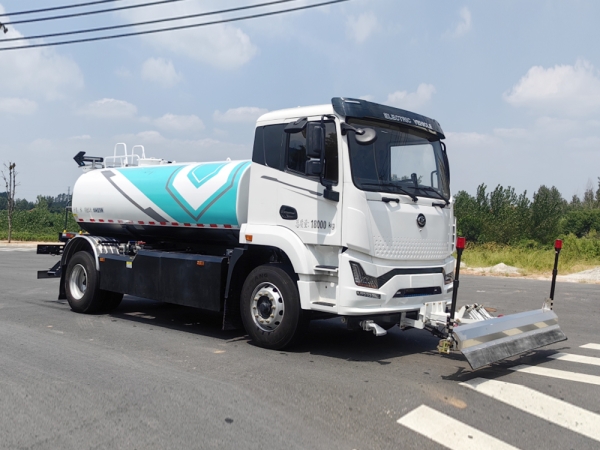

Technical Specifications of the CLW E High-pressure Water Sprinkle truck：
| Main Technology Parameter | |
| Model Name | CLW Brand E High-pressure Water Sprinkle Truck |
| Driving Type | 4x2 |
| Color | white and blue or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 18000 |
| Rated Payload Weight(kg) | 8330 |
| Curb Weight(kg) | 9540 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Front/Rear Overhang(mm) | 1490/1740 |
| Approach/Departure Angle | 16/15 |
| Overall Dimension(mm) | 8830x2550x3050 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | TZ366XS50E |
| Emission Standard | Electric |
| Engine Type | Permanent magnet synchronous motor |
| Max.Output(kw) | 120/200(272hp) |
| Drive Line | |
| Transmission | 4 forwards,1 reverse gear,AMT |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Front Axle | Dena 6.5 tons |
| Rear Axle | Dena 11.5tons |
| Tire Specification | |
| Tire Specification | 295/80R22.5 18PR |
| Front Wheel Track(mm) | 2016 |
| Rear Wheel Track(mm) | 1868 |
| Number of Leaf Springs | 8/10+7,3/4+3 |
| Upper Body | |
| Tank Size | 4500x2200x1350mm |
| Volume | 9.54m³ |
| Raw Material | High-strength carbon steel |
| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 110m |
| High-pressure Pump Brand | PINFL |
| High-pressure Pump Flow Rate | 147L/min |
| High-pressure Pump Pressure | 10 MPa |
Low-pressure sprinkler system: Standard equipped with left and right front flushing duckbill nozzles (with universal adjustment), left and right flange opposite flushing nozzles (with universal adjustment), left and right rear sprinklers, left and right side spray nozzles, and greening water cannons.
High-pressure system: Front spray rack, left and right spray booms, manual hose reel + hand-held spray gun. Width of front spray rack cleaning: 2.5 - 3.8 m. Width of front flushing: ≥ 8 m. Width of opposite flushing: ≥ 24 m. Width of rear sprinkling: ≥ 14 m. Range of water cannon: ≥ 40 m. Sprinkling speed: 7 - 20 km/h.
