Product Description：

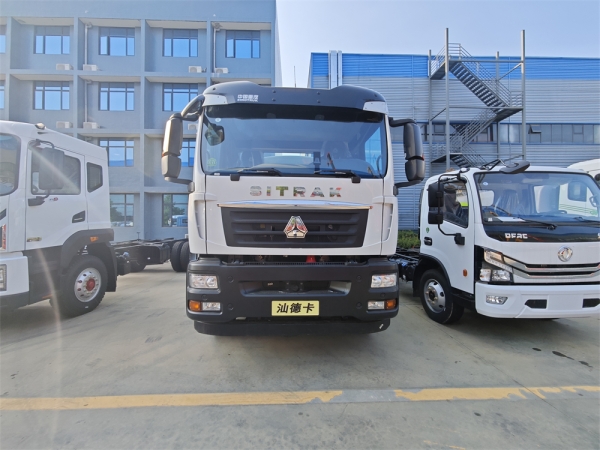

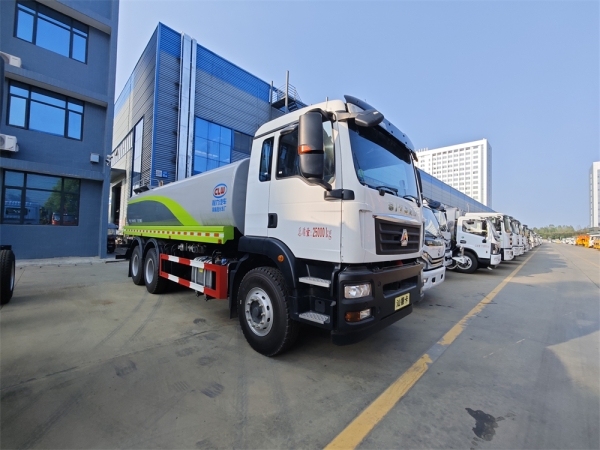

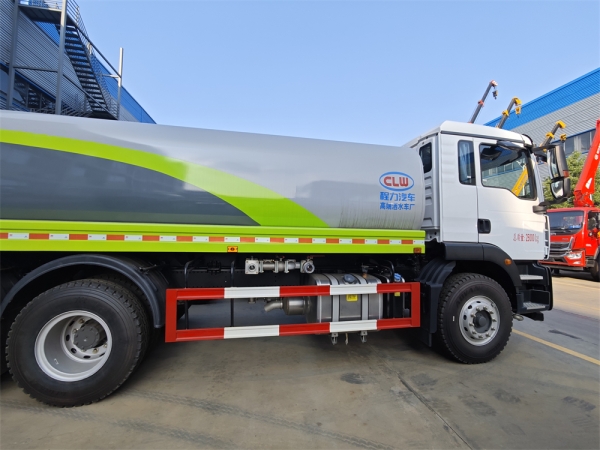

Sitrak 6x4 sprinkler truck: The chassis adopts the Sitrak chassis. The tires used are 11.00R20 18PR. The overall vehicle size is 10020x2550x3200mm, with a wheelbase of 3900 + 1350mm. The engine is WP10.290E32, with a horsepower of 290 and a displacement of 9.726L.

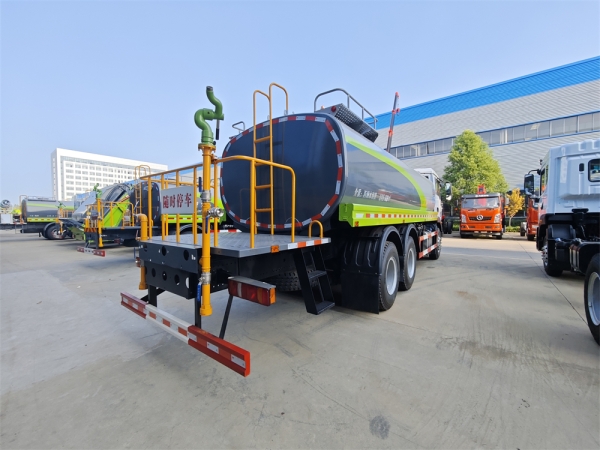

Upper-mounted device: The main devices of this vehicle are the water tank and the spraying system, which are used for epidemic prevention and disinfection, air dust suppression, sanitation spraying, etc.
The total capacity of the tank body is 14.68 cubic meters, and the effective volume is 14 cubic meters. The external dimensions of the tank body (length × long axis × short axis) (mm): 6500x2360x1400.
The materials of the side protection device and the rear protection device are both Q235, and the connection methods are all welded connections; the cross-sectional dimension of the rear protection is (mm): 120×50, and the height from the ground is 480mm.
Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 10800 | |
| Loading Weight(kg) | 14005 | |
| Overall Dimension(mm) | 10020*2550*3200 | |
| Wheelbase(mm) | 3900+1350 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | SITRAK | |
| Chassis Model | ZZ5256XXYN504GF1 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.290E32 |
| HP | 290 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9726/213 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1160 | |
| Maximum Torque Speed(rpm) | 1200-1600 | |
| Gearbox | 10Forward/2Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Tanker Description | Actual Volume(cbm) | 14.6 |
| Effective Volume(cbm) | 14 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||
| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||
Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.
- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
