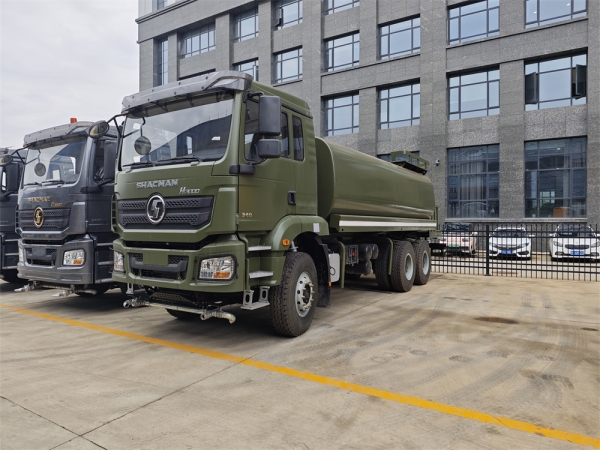

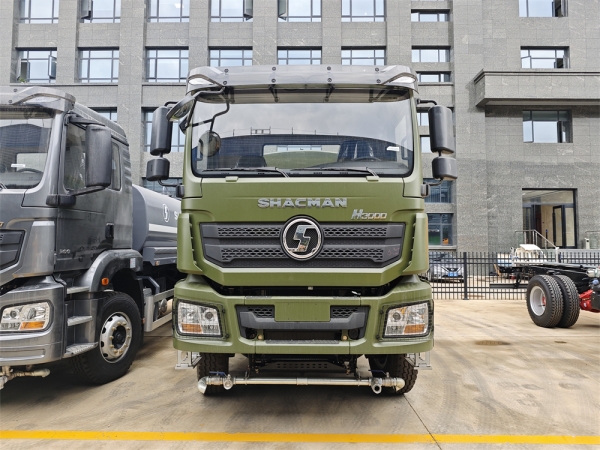

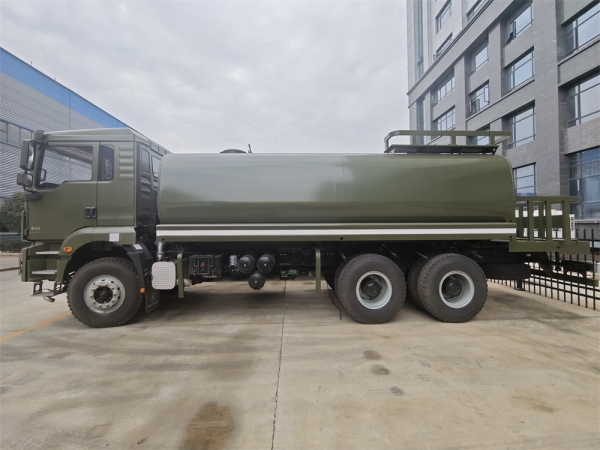

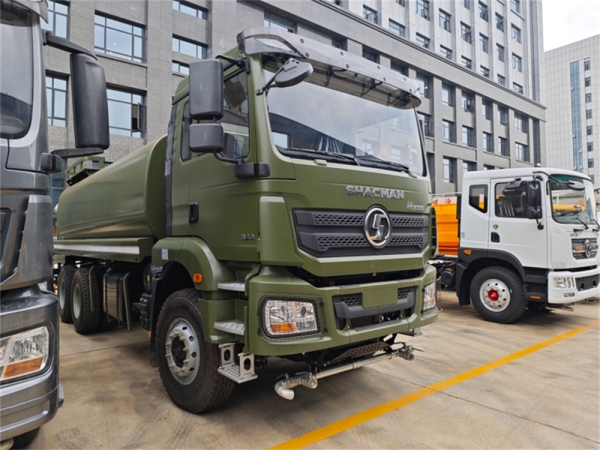

The Shacman H3000 watering truck is designed for optimal water transport, featuring a total tank capacity of 21.2 cubic meters and an effective tank volume of 20 cubic meters. This robust capacity allows for the transport of water with a density of 800 kilograms per cubic meter, ensuring reliable performance in demanding applications.
The tank dimensions are carefully crafted to meet operational needs, measuring 6040 mm (length) × 2430 mm (width) × 1735 mm (height). For enhanced adaptability, this truck is modified exclusively for chassis with a wheelbase of 4375+1350 mm, providing a secure and efficient fit for seamless performance.
The side and rear protections of the Shacman H3000 are made from high-quality Q235 steel, ensuring durability and safety.
Side Protection: Connected using a bolt connection method for easy maintenance.

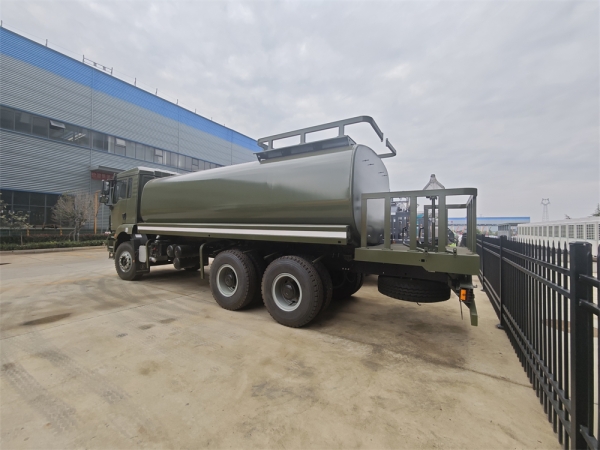

Rear Protection: Welded for robust and secure attachment. The rear protection has cross-sectional dimensions of 120 mm × 50 mm, with a ground clearance of 470 mm, ensuring compliance with safety standards.
The paint finish of this drinking water tanker truck is tailored specifically for the Saudi Arabian market, offering superior durability and aesthetic appeal under local conditions. Additionally, the vehicle paint finish can be fully customized to match individual customer preferences, ensuring both functionality and style.
High-capacity tank for large-scale water transport.
Adaptable design for specific chassis configurations.
Durable construction with secure and reliable protection systems.
Customizable paint options to suit regional and individual requirements.
Contact us today to learn more about the Shacman H3000 Watering Truck and customize it to meet your operational needs!
Main Technical Parameters
| Main Technology Parameter | |
| Model Name | CLW Shacman Watering Truck |
| Driving Type | 6x4 |
| Color | Green or based on client’s request. |
| Number of Cabs | 2 |
| Weights | |
| GVW(kg) | 25000 |
| Rated Payload Weight(kg) | 13970 |
| Curb Weight(kg) | 11130 |
| Dimensions | |
| Wheelbase(mm) | 4375+1350 |
| Front/Rear Overhang(mm) | 1525/2700 |
| Approach/Departure Angle | 16/9 |
| Overall Dimension(mm) | 10270x2550x3260 |
| Max Speed(km/h) | 90 |
| Engine | |
| Engine Model | WP12.400E62 |
| Emission Standard | Euro 5 |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. |
| Max.Output(kw) | 294(400hp) |
| Drive Line | |
| Transmission | 10JSD180T+QH50; 10Forward/2Reverse Gear |
| Steering | Power steering |
| Brake | Air brake system(front and rear drum brakes) |
| Axle | |
| Axle | 7500/13000/13000 |
| Tire Specification | |
| Tire Specification | 315/80R22.5; 10+1 spare tire |
| Front Wheel Track(mm) | 2070 |
| Rear Wheel Track(mm) | 1860 |
| Number of Leaf Springs | 8/10+7,3/4+3 |
| Upper Body | |
| Volume | 20m³ |
| Tank Size | 6040x2430x1735mm |
| Raw Material | High-strength carbon steel(thickness 5mm) |

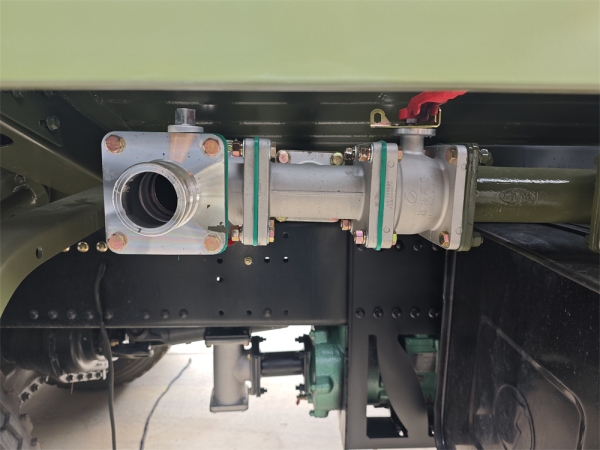

| Pipes | Galvanized pipes |
| Power Take-off Method | Electric power take-off |
| Rated power of the mounted motor | 30/45kw |
| Low-pressure Pump Brand | WeiLong |
| Low-pressure water pump flow rate | 50m³/h |
| Low-pressure water pump head | 110m |
| Optional Configuration | 1.Fog Cannon could be available |
| 2.Tanker material could be customized | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
