Product Description：

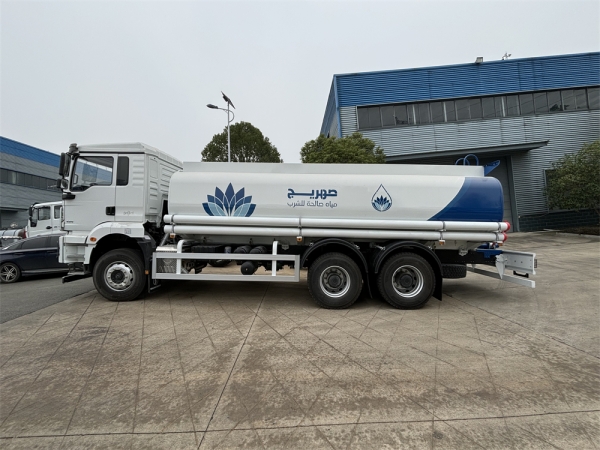

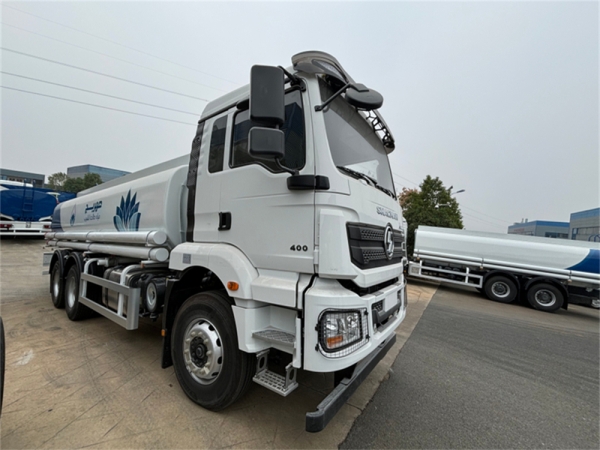

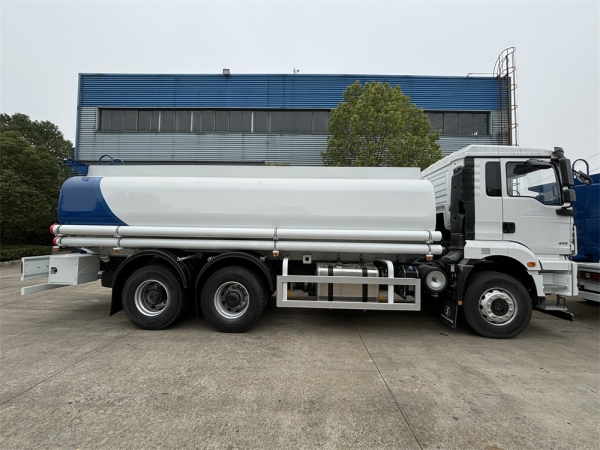

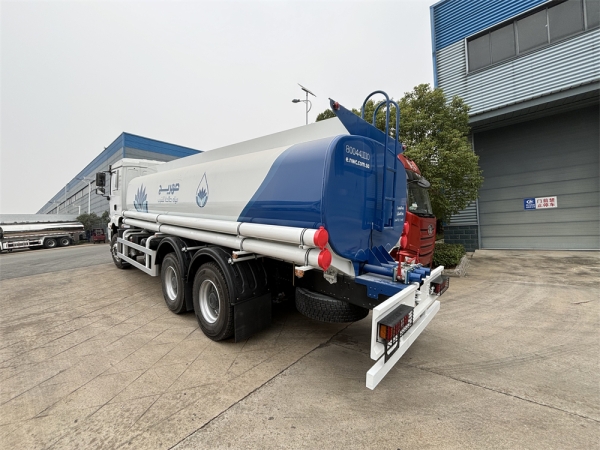

1. The total tank capacity of this shacman H3000 drinking water tanker truck is 19.1 cubic meters. The effective tank volume is 18 cubic meters. The transport medium is water with a density of 800 kilograms per cubic meter.
2. Tank dimensions (length × width × height) in mm: 6500×2450×1650. Only the chassis with a wheelbase of 4375+1400 mm is selected for modification.

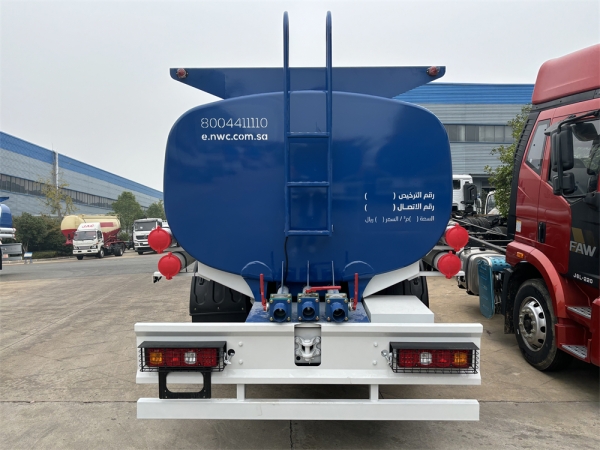

3. The materials for side and rear protections are both Q235. The connection method for side protection is bolt connection. The connection method for rear protection is welding connection. The cross-sectional dimensions of rear protection in mm are 150×50. The ground clearance of the lower edge is 470 mm.
4.The paint finish of this drinking water tanker truck is exclusive for Saudi Arabia. The vehicle paint finish can be customized according to customers' requirements.
Main Technical Parameters
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 11130 | |
| Loading Weight(kg) | 13740 | |
| Overall Dimension(mm) | 10250x2550x3260 | |
| Wheelbase(mm) | 4375+1400 | |
| Axle Load(kg) | 7500/13000 MAN Double | |

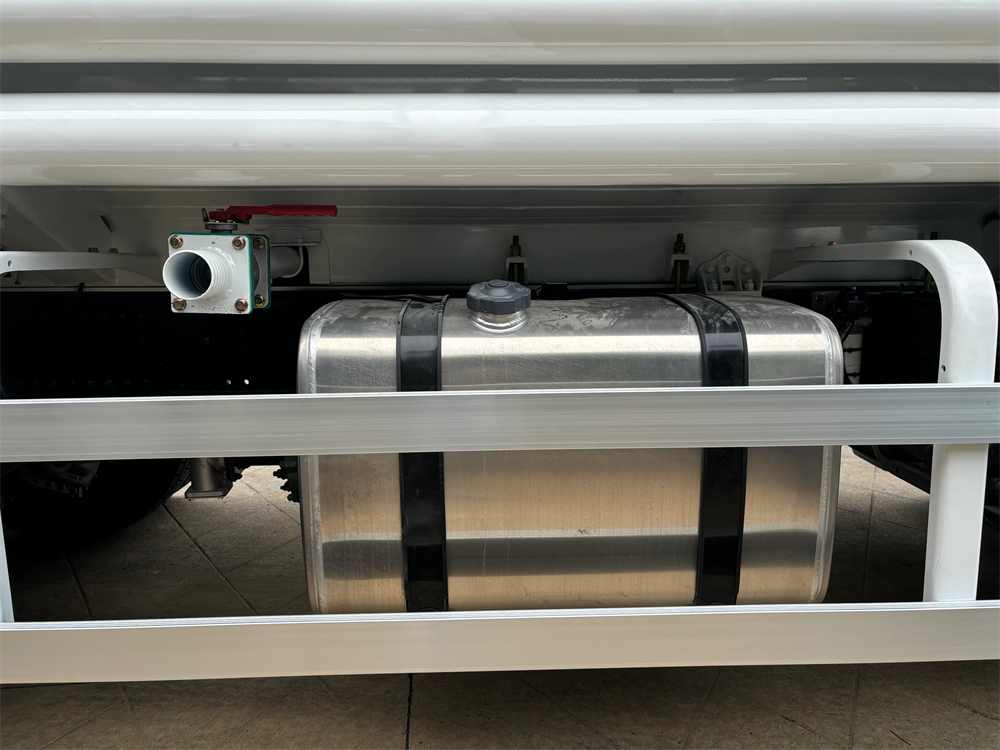

| Fuel Tank(L) | 400 | |
| Top Speed(km/h) | 95 | |
| Chassis Brand | Shacman | |
| Chassis Model | SX5255GJBJR384 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10H400E60 |
| HP | 400 | |
| Emission Standard | Euro 2/3/6 | |
| Displacement/Output(ml/kw) | 9500/294 | |
| Fuel Type | Diesel | |
| Maximum Torque(N·m) | 1900 | |
| Gearbox | RTD-11509C 9Forward/1Reverse Gear | |
| Tyre | 315/80R22.5 Tubeless | |
| Water Tank | Tank Capacity | 18cbm |
| Tank Dimension(mm) | 6500x2450x1650 | |
| Tank Material | Q235 | |
| Thickness | 5mm | |

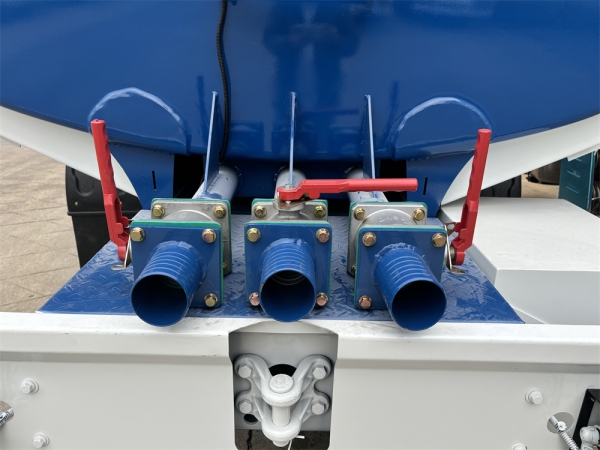

| Inlet/outlet valve | yes | |
| Carriage | 3 | |
| DN80 | ||
| Wave board | Yes | |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
