Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 11130 | |
| Overall Dimension(mm) | 10270*2550*3260 | |
| Wheelbase(mm) | 4375+1400 | |
| Axle Load(kg) | 7500/13000 | |
| Top Speed(km/h) | 89 | |
| Chassis Brand | Shacman | |
| Chassis Model | SX5255GJBJR384 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.340E22 |
| HP | 340 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9726/250 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1250 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Gearbox | 10Forward/2Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Tanker Description | Actual Volume(cbm) | 18.03 |
| Effective Volume(cbm) | 17.15 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||
| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||

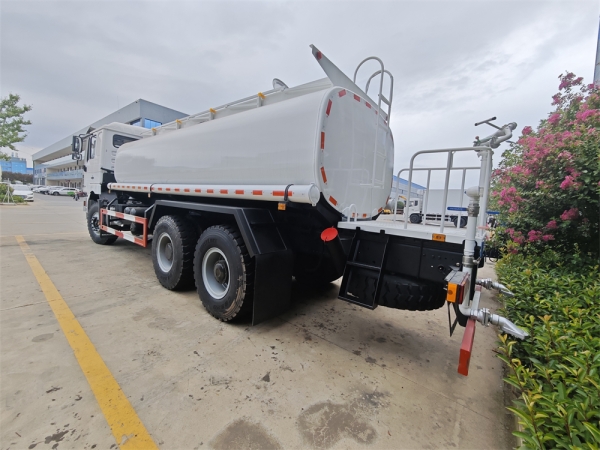

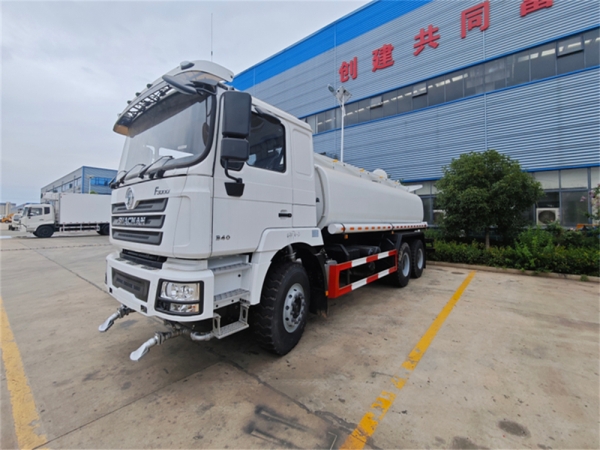

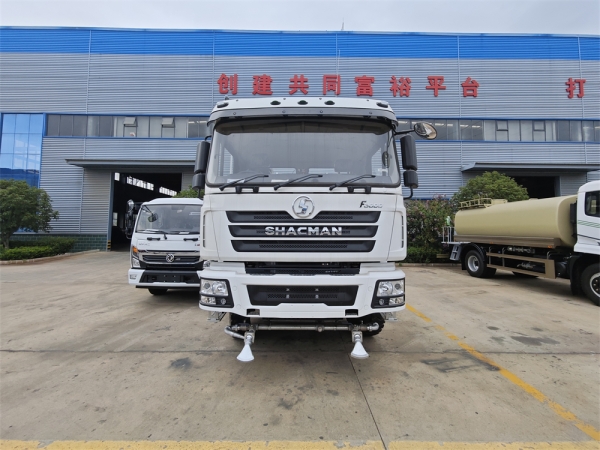

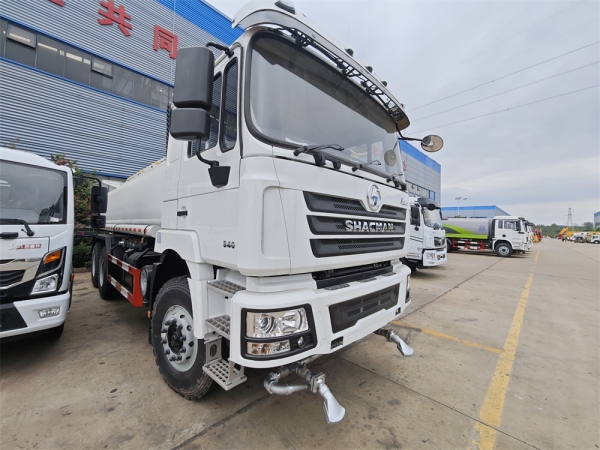

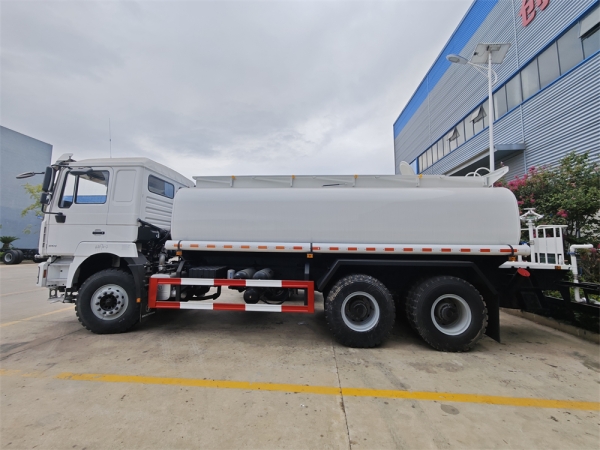

This Shacman F3000 6x4 17cbm Water Tank Sprinkler Truck is based on the shacman f3000 6x4 chassis and is configured with 10.00r20 18pr tires. The overall vehicle size is 8550×2550×3200mm, and the wheelbase is 4375+1400mm. Its power is provided by the wp10.340e22 engine, with a horsepower of 340 and a displacement of 9.726L.
The main devices of this vehicle are a water tank and a spraying system, which are used for epidemic prevention and disinfection, air dust suppression, environmental sanitation spraying, etc.
The total capacity of the tank is 18.03 cubic meters, and the effective volume is 17.15 cubic meters. The shape size of the tank (length × long axis × short axis) (mm): 6550×2450×1650.
The materials of the side protection and rear protection devices are both Q235, and the connection methods are all welded connections. The cross-sectional size of the rear protection is (mm): 150×50, and the ground clearance is 490mm.
Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.
- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
