Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 31000 | |
| Curb Weight(kg) | 12405 | |
| Overall Dimension(mm) | 11900x2550x3300 | |
| Wheelbase(mm) | 1995+3100+1350 | |
| Axle Load(kg) | 6500/6500/18000 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | DongFeng | |
| Chassis Model | DFV1313GP6 | |
| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP10.290 |
| HP | 290 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 9726/213 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2200 | |
| Maximum Torque(N·m) | 1160 | |
| Maximum Torque Speed(rpm) | 1200-1600 | |
| Engine Type | Water-cooled, four-stroke, with exhaust valve braking, direct injection, and turbocharged intercooling. | |
| Gearbox | RTD11509C: 9Forward/1Reverse Gear | |
| Tyre | 425 85R21 | |
| Tanker Description | Actual Volume(cbm) | 30.2 |
| Effective Volume(cbm) | 29.1 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 6 | |
| Standard configuration | Equipped With | |
| 1.Front Sprinkler(rear and side,sprinkling width>14m) | ||
| 2.Rear Working Platform With Water Cannon(range>28m) | ||
| 3.Pump(suction Lift>6m) | ||
| 4.Fire Valve,Water Valve,and Filter Gauze | ||
| Optional Configuration | 1.Fog Cannon Could Be Available | |
| 2.Tanker Material Could Be Customized | ||
Product Description:

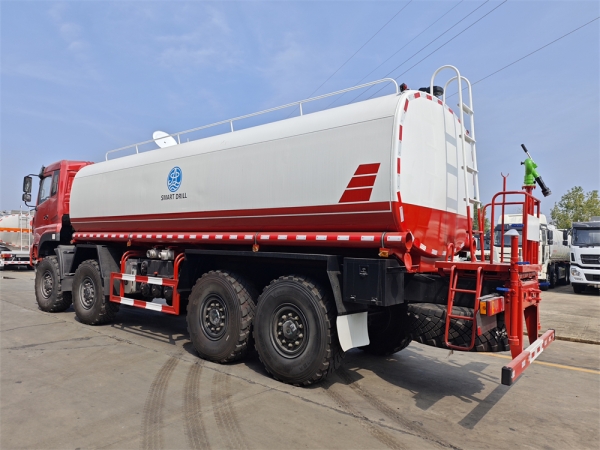

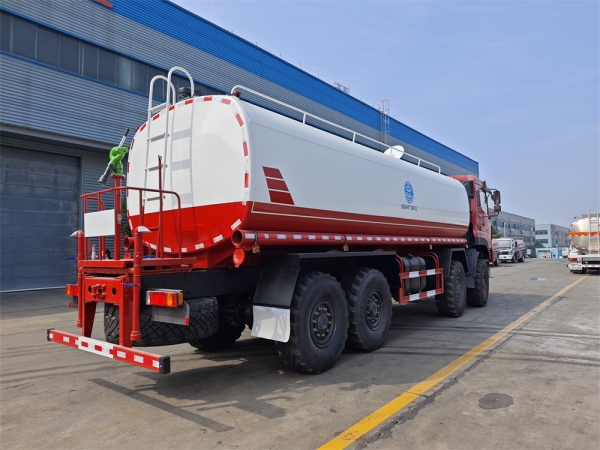

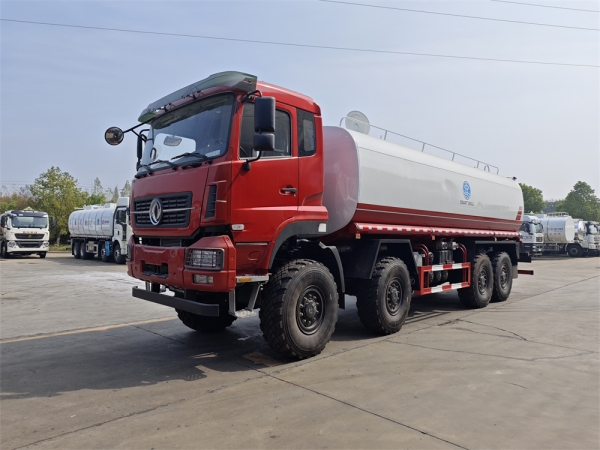

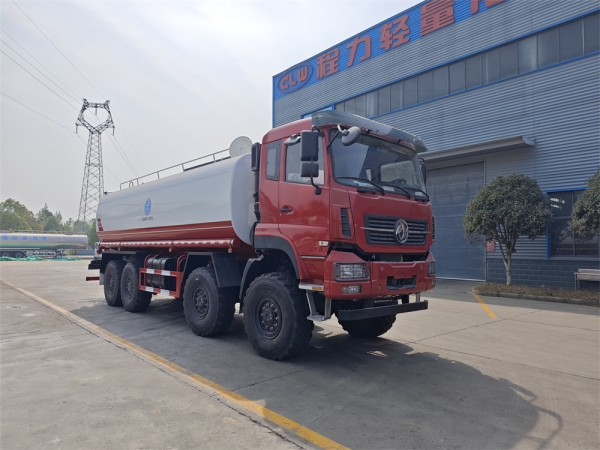

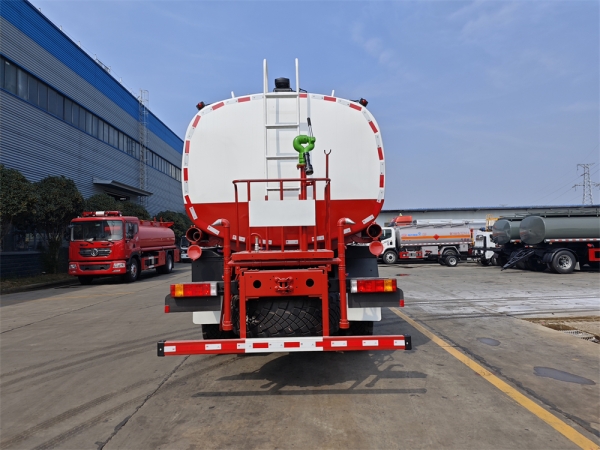

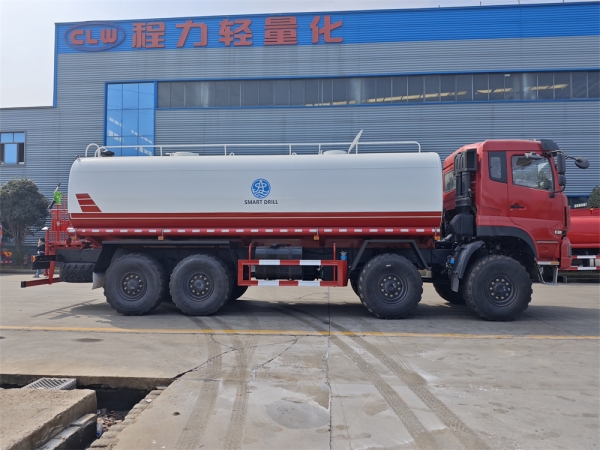

This DongFeng 8x4 30cbm water sprinkler truck is based on the DongFeng chassis and is configured with 425 85R21 tires.
The vehicle is equipped with a tank, water pump, pipeline system, etc. It is used for cleaning road surfaces and spraying water on road surfaces to reduce dust.
The total capacity of the tank is 30.2 cubic meters, and the effective volume of the tank is 29.1 cubic meters. The tank size (length × width × height) in millimeters is 9200x2500x1900. Only the chassis with a wheelbase of 1995+3100+1350 mm is selected for modification.
The materials of the side and rear protections are both Q235. The side protection connection method is bolt connection. The rear protection connection method is welding connection. The rear protection cross-sectional size (mm) is 60x120, and the ground clearance of the lower edge is 500 mm.
Optional front bumper and front face appearance of the cab are selected according to the chassis; optional wheel cover appearance and footboard appearance are selected, and optional low-position bumper is selected. Optional cab without sun visor.
Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.
- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
