Product Description:

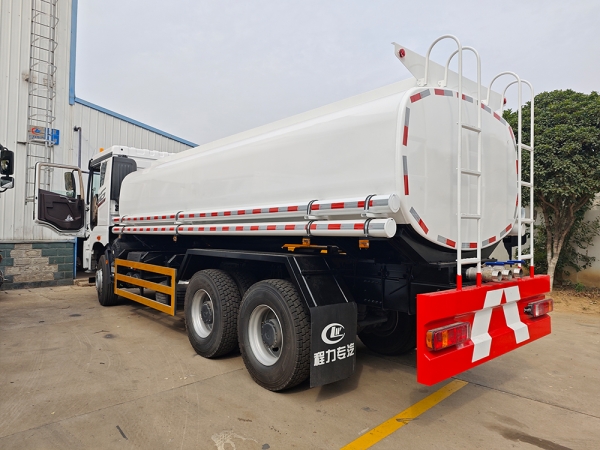

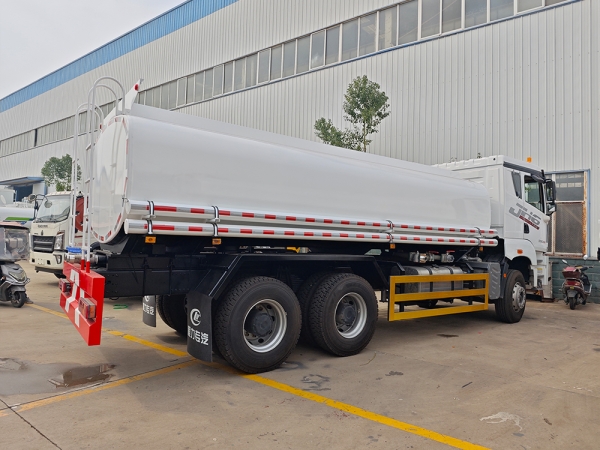

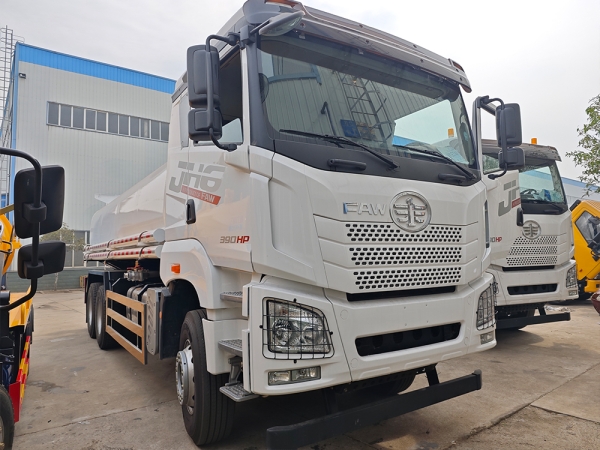

The FAW JK6 Water Tank for Truck is an outstanding special-purpose vehicle.
In terms of the chassis, it adopts the FAW JK6 6x4 chassis, which is highly stable. Equipped with 11.00r20 18pr tires, it can adapt to various road conditions. The overall vehicle size is 9700x2530x3070mm, with a wheelbase of 4350+1350mm. The proportions are coordinated and the driving is stable. Its engine is wp10.240e32, with 240 horsepower and a displacement of 6.75L. It is powerful and provides a strong guarantee for the efficient operation of the vehicle.

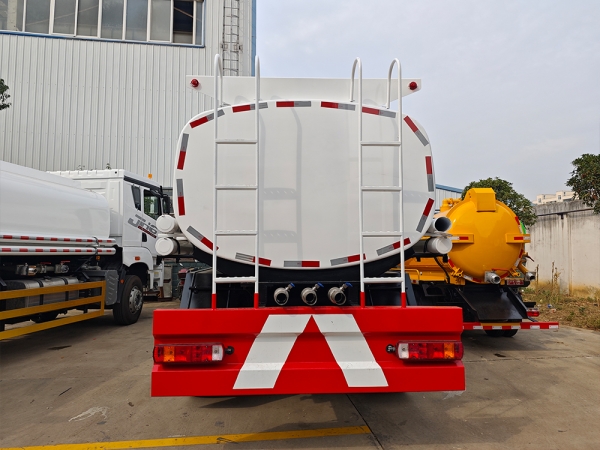

The total capacity of the water tanker's tank is 14.6 cubic meters, and the effective volume is 13.9 cubic meters. The tank body is 6250mm long, with a long axis of 2300mm and a short axis of 1400mm. It can meet the water transportation needs on a large scale. In terms of protection devices, both the side protection and the rear lower protection devices are made of Q235A material, which is sturdy and durable. The side protection is connected to the frame by bolts, and the rear protection is welded to the rear of the frame. The cross-sectional dimensions of the rear lower protection device are 120mm in height and 80mm in width, and the ground clearance is 490mm. It can not only effectively protect the key parts at the bottom of the vehicle but also ensure the passability when driving on different terrains.
Main technical parameters：
| Vehicle Description | Brand | CLW |
| GVW(kg) | 25000 | |
| Curb Weight(kg) | 10900 | |
| Loading Weight(kg) | 13905 | |
| Overall Dimension(mm) | 9700x2530x3070 | |
| Wheelbase(mm) | 4350+1350 | |
| Axle Load(kg) | 7000/18000 | |
| Top Speed(km/h) | 90 | |
| Chassis Brand | FAW | |
| Chassis Model | CA1250P62K1L3T | |

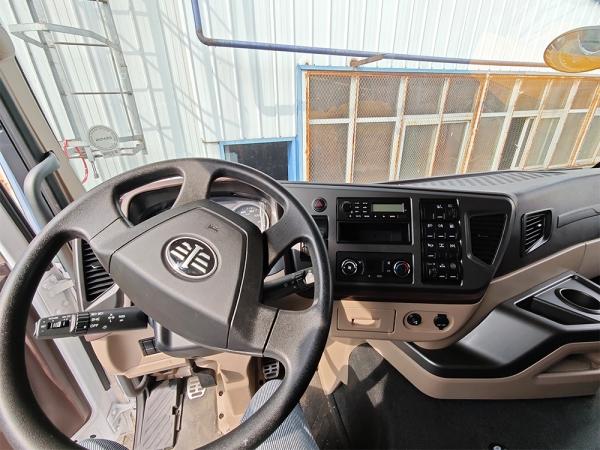

| Cabin | Single,LHD,with A/C | |
| Engine | Model | WP6.240E32 |
| HP | 240 | |
| Emission Standard | Euro 3 | |
| Displacement/Output(ml/kw) | 6750/176 | |
| Fuel Type | Diesel | |
| Rate Speed(rpm) | 2500 | |
| Maximum Torque(N·m) | 1160 | |
| Maximum Torque Speed(rpm) | 1400-1600 | |
| Engine Type | Water-cooled, four-stroke, in-line vertical,direct injection,wet cylinder liner | |
| Gearbox | RTD11509C: 9Forward/1Reverse Gear | |
| Tyre | 11.00R20 18PR | |
| Tanker Description | Actual Volume(cbm) | 14.6 |
| Effective Volume(cbm) | 13.9 | |
| Tanker Material | Carbon Steel,Stainless Steel,According to Customer needs | |
| Thickness(mm) | 5 | |
Other features:
- Installed sprinkling music reminder device: It can emit a music prompt sound during operation to remind pedestrians and vehicles to pay attention and avoid, ensuring operation safety.
- Installed water level gauge: It is convenient for the operator to know the water level in the tank in real time so as to replenish the water source or stop the operation in time to avoid situations such as empty tanks or overflow.

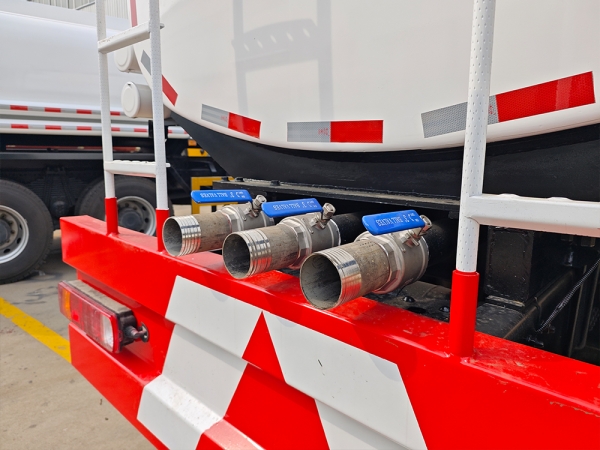

- With fire-fighting interface: It can take in water through the fire hydrant, has an auxiliary fire-fighting function, and can be used as a fire-fighting equipment in emergency situations, increasing the multifunctionality and emergency response capability of the vehicle.
